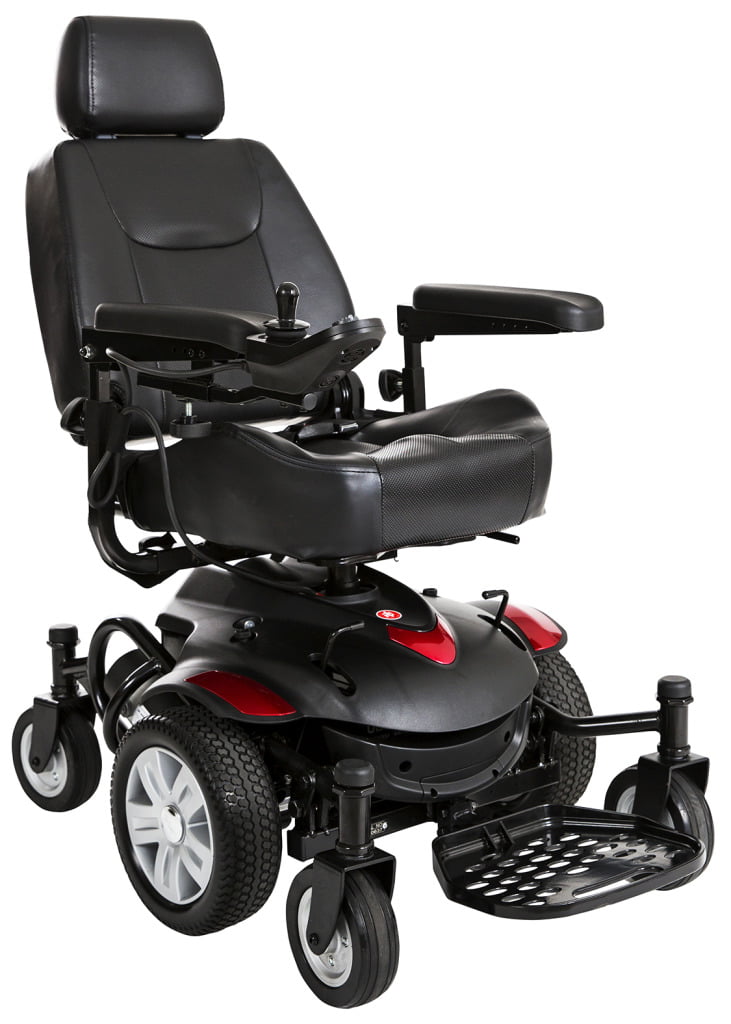

Titan AXS Mid-Wheel Drive Powerchair

CUSTOMIZE THE PRODUCT & BUY

By Drive Medical: TITANAXS-1618CS



SKU: By Drive Medical: TITANAXS-1618CS Categories: , ,
  • Captain’s seat, available in 7 different width and depth combinations, is height adjustable, reclines, swivels in 45° increments, and has a height adjustable headrest
  • Padded, contoured armrests with height, width and angle adjustment
  • Adjustable length controller mount
  • Interchangeable color panels in red and blue included
  • Flip-up footplate with height, depth and angle adjustment
  • Positioning belt included

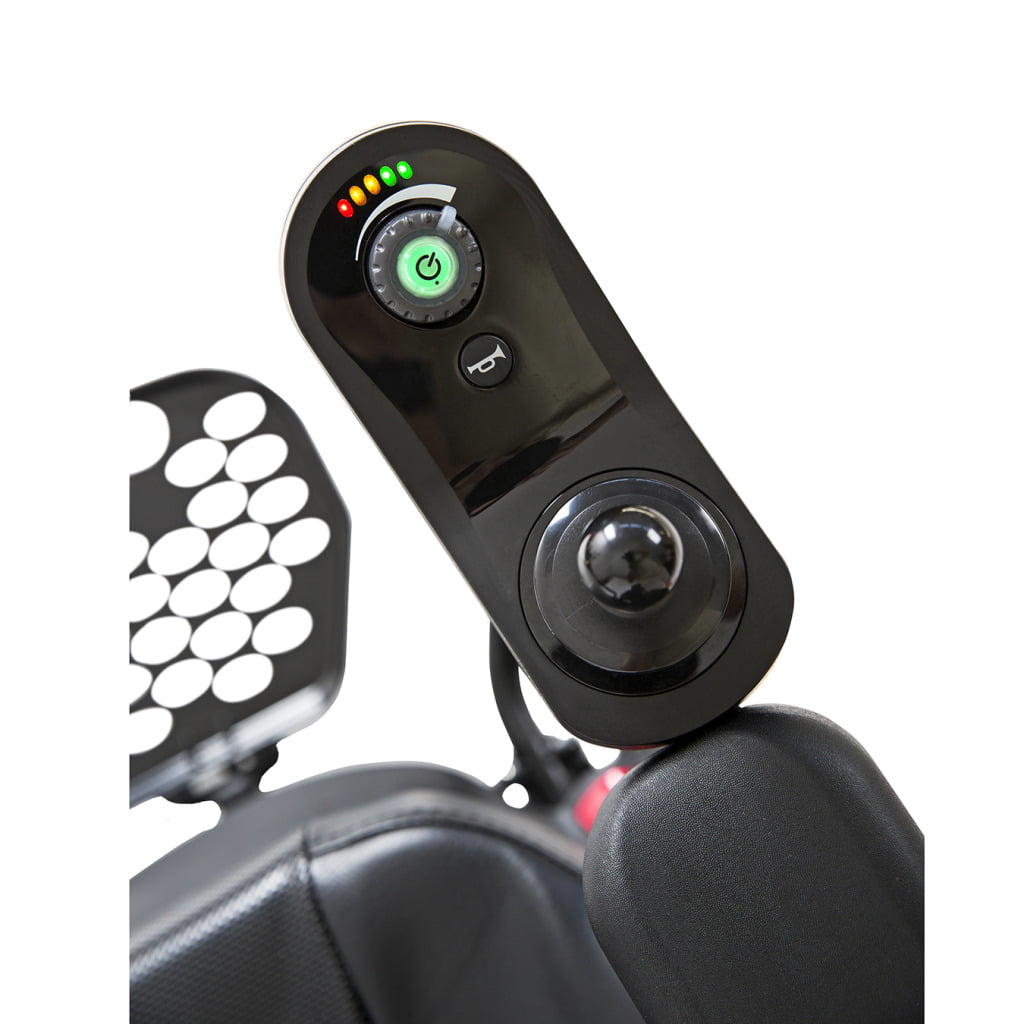

  • Programmable controller with Bluetooth electronics for easy trouble-shooting and service
  • Flat-free, non-marking tires
  • Easy freewheel operation

Details & Specs

Back Height18″
Base Weight87 lbs.
Batteries (pair)12V x 33AH
Battery Charger4A
Battery Weight (pair)44 lbs.
BrakesElectromagnetic
Caster Wheels6″ x 2″
ControllerDynamic Linx 40A
Drive Wheels10″ x 3″
Estimated Range19 miles
Freewheel ModeYes
Ground Clearance2.5″
Max Climbing Angle
Motor320W x 4600RPM
Overall Dimensions39.25″ (L) x 23.5″ (W) x 44″ (H)
Seat Dimensions16″ | 18″ | 20″ | 22″
Seat To Floor Height20.75″ | 21.75″
Seat Weight40 lbs.
TiresFlat Free
Top Speed4 mph
Total Weight (excl. hand control)171 lbs.
Turning Radius20″

Download Materials

Download PDFDownload Catalog Page

Warranty

Warranty on Batteries12 Months
Warranty on Electronics24 Months
